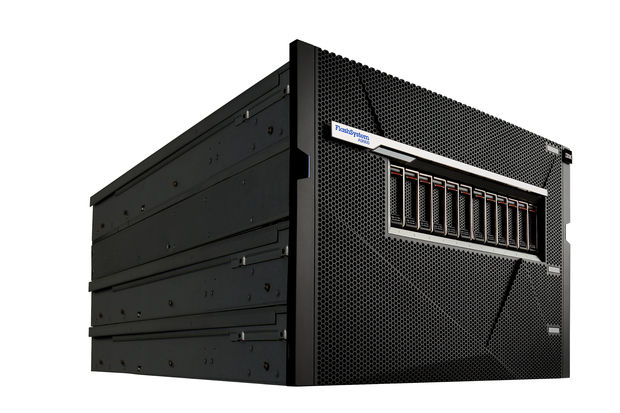

IBM Хранилище FlashSystem A9000R с когнитивными вычислениями
| Цена: |
по запросу |
| Наличие: |
Под заказ
|
| Артикул: | A9000 | | Производитель: | IBM |
 |
|
| Model |
9835-415 (1-year warranty), 9837-415 (3-year enterprise-class warranty) |
| Controllers |
Up to 12 active grid controllers, each containing:
- Two Intel Xeon E5 v3 10-core 2.3 GHz processors
- 384 GB DDR4 memory
- Redundant battery backup units and power supply units
|
| Software |
IBM FlashSystem A9000 and IBM FlashSystem A9000R software v12 |
| Flash type |
IBM-enhanced MLC |
| |
900 TB configuration |
1.8 PB configuration |
| Effective capacity* (TB) |
300 |
450 |
600 |
750 |
900 |
600 |
900 |
1,200 |
1,500 |
1,800 |
| Maximum capacity† (TB) |
1,400 |
2,000 |
2,600 |
3,000 |
3,000 |
1,400 |
2,000 |
2,600 |
3,000 |
3,000 |
| Raw capacity (TB) |
105.6 |
158.4 |
211.2 |
264.0 |
316.8 |
211.2 |
316.8 |
422.4 |
528.0 |
633.6 |
| Flash enclosure type |
Flash Enclosure-150 |
Flash Enclosure-300 |
| Flash enclosures |
2 |
3 |
4 |
5 |
6 |
2 |
3 |
4 |
5 |
6 |
| Grid controllers |
4 |
6 |
8 |
10 |
12 |
4 |
6 |
8 |
10 |
12 |
| IBM MicroLatency modules per flash enclosure |
12 x 2.9 TB |
12 x 5.7 TB |
| Performance: Scaled-out configuration (six grid elements) |
| IOPS |
Up to 2,000,000 |
| Maximum bandwidth |
18 GB/s |
| Minimum latency |
250 µs |
| Data reduction and efficiency |
- Pattern removal
- Global, inline deduplication
- Inline compression
- Space-efficient snapshots
- Thin provisioning
|
| Encryption |
Hardware-based AES-XTS 256-bit with centralized key management‡ |
| Host connectivity options |
Per controller:
4 x 16 Gb Fibre Channel + 2 x 10 Gb iSCSI, or
4 x 10 Gb iSCSI |
| Backplane interconnect |
InfiniBand |
| Power |
Entry configuration: 3.07 KW (typical); 4.82 KW (max)
Scaled out configuration: 8.81 KW (typical); 13.91 KW (max) |
| Rack dimensions (H x W x D) |
201.5 cm (42U) x 64.4 cm x 129.7 cm (79.3 in. x 25.4 in. x 51.1 in.) |
| Weight |
Entry configuration: 666 kg (1,468 lb)
Scaled out configuration: 986 kg (2,174 lb) |
| Client operating system support |
For a current list of platforms supported, please visit the |
|
