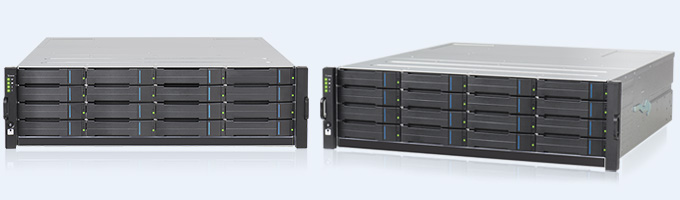

Infortrend Дисковый массив EonStor GSi 5000

GSi 5016

3U 16-bay

Single controller

2 x PCI-E 3.0 x 16 slots

• 2 x 10GbE Port (SFP+)
• 4 x 1GbE ports (RJ-45)
• 2x USB 2.0
• 2x USB 3.0
• 1x 12Gb/s SAS expansion port

Default DDR4 64GB, up to 128GB, 256GB, 512GB or 1024GB

12Gb/s SAS

S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive

• 2.5" SAS SSDs
• 2.5" SATA SSDs
• 2.5" 10,000RPM SAS drives
• 3.5" 7,200 RPM Nearline SAS drives
• 3.5" 7,200 RPM SATA drives

Support the integration with following cloud providers :

• Amazon S3
• Microsoft Azure
• Alibaba Cloud
• OpenStack

• Global, designated or enclosure hot-spare
• RAID levels supported : RAID 0, 1, (1+0), 3, 5, 6, 10, 30, 50, 60
• Online expansion by:
  • Adding new drives
  • Copying and replacing drives with drives of larger capacity
• RAID migration
• Configurable stripe size and write policy per system
• Intelligent drive handling
  •  In degraded mode: skips irreparable blocks to continue rebuild
  •  In normal operation: data-block verification and repair

Default software features include:

• SED (Self-encrypting drives)
• Thin-provisioning
• Snapshot: 64 per volume/ 128 per system
• Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
• File-level remote replication (Rsync)

Optional software features require additional license:

• SSD cache
• Automated tiering (2/ 4 tiers)
• Advanced snapshot: 256 per volume/ 4096 per system
• Advanced block-level local replication: Replication pairs per source volume: 8 ; Relication pairs per system: 256
• Advanced block-level remote replication: Replication pairs per source volume: 8 ; Relication pairs per system: 64

• 80 PLUS-certified power supplies delivering more than 80% energy efficiency
• Intelligent multi-level drive spin-down

Various event notification methods including email and SNMP trap.

• Web-based EonOne management software
• Automated cache flush and caching mode operation per enclosure status
• Module status LED indicators: component presence detection & thermal sensors via I2C bus
• Storage Resource Management to analyze history records of resource usage
• Automate repeatable management tasks by flexible workflow

• IPv6 support
• Fixed or dynamic IP address
• Dual Gigabit Ethernet with Jumbo Frame
• Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
• DHCP client
• MPIO, MC/S support

• User account management
• Group management
• Folder management
  - Folder and subfolder access control
• Folder quota
• Comprehensive access control action items
  - All Controls, Read, Read and Run, Write, Modify, List
• Support Windows Active Directory Authentication
  - Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer
• LDAP on Linux

Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer

Standard service

• 3-year limited hardware/software warranty and 8x5 phone, web, and email support

​Upgrade/Extension service (optional and service may vary by region)

• replacement part dispatch on the next business day (up to 5 years)

• Power supplies: Redundant/hot-swappable 1200W x 2
• AC voltage: 100-127VAC/12.47A, 200-240VAC/7.08A with PFC (auto-switching)
• Frequency: 47-63Hz

• Temperature:
  • Operating: 5 to 35°C
  • Non-operating: -40 to 60°
• Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
• Relative humidity: 5 to 95% non-condensing, operating and non-operating

• Safety: UL, BSMI, CB
• Electromagnetic Compatibility: CE, BSMI, FCC

447mm (W) x 130mm (H) x 500mm (D)

(Without chassis ears / protrusions)

22kg/ 48.50lbs (without HDDs)
