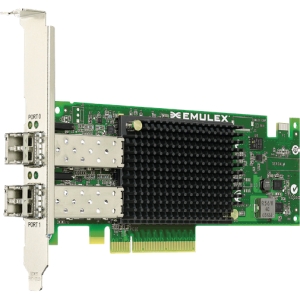

Emulex Контроллер 10Gb/s PCIe dual channel FCoE 10GBase-SR (short reach optical) (OCe11102-FM)

Controller

• BladeEngine 3

Standards

• ANSI INCITS T11 FC-BB-5 2.0, FC-PI-2, FC-GS-4,FC-TAPE, and FCP-3
• PCI Express base spec 2.0, PCI Bus Power Management Interface, rev. 1.2, Advanced Error Reporting (AER)
• IEEE 802.3ae (10GBASE Ethernet Ports)
• IEEE 802.1q (Virtual LANs)
• IEEE 802.3ad (Link Aggregation)
• IEEE 802.3x (Flow Control)
• IEEE 802.1p (Quality/Class of Service)
• IEEE 802.1Qaz (Enhanced Transmission Selection)
• IEEE 802.1Qaz (Data Center Bridging Capabilities Exchange)
• IEEE 802.1Qbb (Priority-based Flow Control)
• IEEE 802.1ab (Link Layer Discovery Protocol)
• PHP hot plug-hot swap

Architecture

• Dual-channel, 10Gb/s Ethernet Link speed
• PCIe Express 2.0 (x8, 5GT/s), MSI-X support
• Integrated data buffer and code space memory

FCoE Features

• Common driver for UCNAs and HBAs
• 64 N_Port ID Virtualization (NPIV) interfaces (total for adapter)
• Support for FIP and FCoE Ether Types
• Fabric Provided MAC Addressing (FPMA) support
• 1024 concurrent  port logins (RPIs) per port
• 1024 active exchange (XRIs) per port

iSCSI Features

• Target discovery methods
• Authentication mode
• INT 13 Boot

Ethernet Features

• IPv4/IPv6 TCP, UDP checksum offload; Large Send Offload(LSO); Large Receive Offload; Receive Side Scaling (RSS); TCP Segmentation Offload (TSO); IPv4 TCP Chimney Offload
• VLAN insertion and extraction
• Jumbo frames up to 9000 Bytes
• Preboot eXecution Environment (PXE) 2.0 network boot support
• Interrupt coalescing
• Load balancing and failover support including adapter fault tolerance (AFT), switch fault tolerance (SFT), adaptive load balancing (ALB), teaming support and IEEE 802.3ad

Comprehensive OS Support

• Windows Server
• VMware ESX
• Red Hat Enterprise Linux Server
• Novell SUSE® Linux Enterprise Server
• Oracle Solaris (FCoE only)
• CentOS

Hardware Environments

• x86, x64 servers
• Sun SPARC servers

Interconnect

• Copper
  • SFP+ Direct Attached Twin-Ax Copper interface
  • Standards compliant passive copper cables up to 5m and active copper cables up to 10m
• Optical
  • Optics: 10GBASE-SR short wave lasers with LC type connector supported up to 100m

Physical Dimensions

• Low profile with standard bracket (low-profile bracket available)

Environmental Requirements

• Operating temperature: 0° to 55° C (32° to 131° F)
• Storage temperature: -40° to 70° C (-40° to 158° F)
• Relative humidity: 5% to 95% non-condensing

Agency Approvals

• Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
• UL recognized to UL 60950-1 2nd edition
• CUR recognized to CSA22.2, No. 60950-1-07
• Bauart-certified to EN60950-1 2nd edition
• FCC Rules, Part 15, Class A
• ICES-003, Class A
• EMC Directive 2004/108/EEC (CE Mark)
  • EN55022, Class A
  • EN55024
• Australian EMC Framework (C-Tick Mark)
  • AS/NZS CISPR22, Class A
• VCCI (Japan), Class A
• KCC (Korea), Class A
• BSMI (Taiwan), Class A
• EU RoHS Compliant (Directive 2002/95/EC)
• China RoHS Compliant

Ordering Information

• OCe11102-FM
  • Dual-channel, 10GBase-SR (short reach optical)
• OCe11102-FX
  • Dual-channel, 10GBase-CR (direct attach copper)
