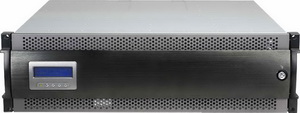

Maxtronic Дисковый массив Nova 30R

Nova 20S

Nova 20R

Nova 30S

Nova 30R

Hardware Components

RAID Controller

Single

Redundant

Single

Redundant

No. of Host Channels
Per Controller

4 x 8Gb FC

8 x 8Gb FC

4 x 8Gb FC

8 x 8Gb FC

Expansion Enclosure

Nova 34S JBOD

Nova 34R JBOD

Nova 34S JBOD

Nova 34R JBOD

Cache Memory
Per Controller

2GB, up to 4GB

2GB, up to 4GB

2GB, up to 4GB

2GB, up to 4GB

No. of Drives

12 (SAS/SATA)

12 (SAS/SATA) *

16 (SAS/SATA)

16 (SAS/SATA) *

Max. No. of Drives

120

120

120

120

Power Supply

2 x 400W

2 x 400W

2 x 500W

2 x 500W

Fan

2

2

2

2

Dimensions

2U 19” Rackmount
485 x 593 x 88mm (W x D x H)

3U 19” Rackmount
485 x 593 x 132mm (W x D x H)

Feature Highlights

Green

Auto disk Standby
Advanced cooling mechanism
80 PLUS energy-efficient power supplies

RAID & Volume

RAID level 0,1,3,5,6,10,30,50, 60, JBOD, NRAID
Up to 1024 logical volumes
Up to 32 hard drives per volume group
One logic volume can be shared by as many as 16 hosts
Global and dedicated hot spare
Write-through or write-back cache policy
Online volume expansion
Instant RAID volume availability
Auto volume rebuilding
On-line volume migration without system down time

High Availability

Dual-active RAID (Symmetric) controller
Online firmware upgrade
Multi-path & load-balancing support (PathGuard)

Advanced Data Protection

Array based snapshot
Microsoft Windows Volume Shadow Copy Services (VSS)
Online disk roaming
SmartCor. Function (DST, DS, DC)
Array Recovery Mechanism
Optional Local/Remote Replication features

Management

LCM; Serial console; SSH telnet; HTTP Web UI; Secured Web (HTTPS); S.E.S.

Notification

Email; SNMP trap; Browser pop-up windows; Syslog; Windows Messenger

OS Support

Windows; Linux; Mac

Virtualization

VMWare; Hyper-V; Citrix

Requirements

AC Input

100-240V (+/-10%), 47 – 63Hz

Operating Temperature

5 to 40°C

Relative Humidity

20% to 80% non-condensing

Optional Components

Cache backup Module

CAP Module + Flash module

SATA board

6Gbs SATA drives support on Redundant controller SKU
