※ Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 and JBOD
※ Supports online Array roaming
※ Online RAID level/stripe size migration
※ Online capacity expansion and RAID level migration
simultaneously
※ Support global and dedicated hot spare
※ Online Volume Set Expansion
※ Support multiple array enclosures per host connection
※ Greater than 2TB per volume set (64-bit LBA support)
※ Greater than 2TB per disk drive
※ Supports 4K bytes/sector for Windows up to 16TB per volume set
※ Disk scrubbing/ array verify scheduling for automatic repair of all
configured RAID sets
※ Login record in the event log with IP address and service (http,
telnet and serial)
※ Support intelligent power management to save energy and extend
service life
※ Support NTP protocol to synchronize RAID controller clock over
the on-board LAN port
※ Max 128 LUNs (volume set) per controller
※ Transparent data protection for all popular operating systems
※ Instant availability and background initialization
※ Supports S.M.A.R.T, NCQ and OOB Staggered Spin-up capable
drives
※ Supports hot spare and automatic hot rebuild
※ Local audible event notification alarm
※ Redundant flash image for high availability
※ Real time clock support
RAID Controller | 8Gb FC – 6Gb SAS |
Controller | Single or Redundant |
Host Interface | Four / Eight FC-AL (8 Gb/s) |
Disk Interface | 6Gb/s SAS , 6Gb/s SATA |
SAS Expansion | Two / Four 6Gb/s SAS (SFF-8088) |
Capacity | |
Direct Attached | 64 Disks |
Expansion | Up to 128 Disks |
Processor Type | 800MHz RAID-On-Chip storage processor |
Cache Memory | 1GB ~ 4GB / 2GB ~ 8GB DDR2-800 ECC Registered SDRAM |
Battery Backup | Optional |
Management Port Support | Yes |
RAID Features | |
RAID level | 0, 1,10(1E), 3, 5, 6, 30, 50, 60 and JBOD |
Array Group | Up to 128 |
LUNs | Up to 128 |
Hot Spare | Yes |
Drive Roaming | Yes |
Online Rebuild | Yes |
Variable Stripe Size | Yes |
E-mail Notification | Yes |
Online capacity expansion, RAID level / stripe size migration | Yes |
Online Array Roaming | Yes |
Online consistency check | Yes |
SMTP manager and SNMP agent | Yes |
Redundant Flash image | Yes |
Instant availability and background initialization | Yes |
S.M.A.R.T. support | Yes |
MAID 2.0 | Yes |
Bad block auto-remapping | Yes |

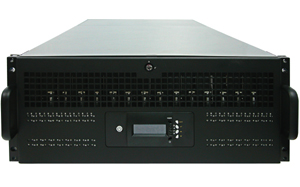

Enclosure | |
Platform | Rackmount |
Form Factor | 4U |
# of Hot Swap Trays | 64 |
Tray Lock | Yes |
Disk Status Indicator | Access / Fail LED |
Backplane | SAS2 / SATA3 |
# of PS / Fan Modules | 1100W x 2 w/PFC |
# of Fans | 15 |
Power Requirements | AC 90V ~ 254V Full Range, 50Hz~60Hz |
Environmental | |
Relative Humidity | 10% ~ 85% Non-condensing |
Operating Temperature | 10°C ~ 40°C (50°F ~ 104°F) |
Physical Dimension | 900(L) x 482.6(W) x 177(H) mm |
Weight (Without Disk) | 43.5/45Kg |
