Сетевое хранилище ZyXEL NAS540 на 4 HDD

Цена: 28750 р
Наличие: Под заказ
Артикул: NAS540
Производитель:ZyXEL



System Specifications

Networking

  • Network protocol:
    • CIFS/SMB for Windows
    • NFS for Linux/Unix
    • DHCP client
    • PPPoE
    • Network Time Protocol (NTP)
  • Network applications:
    • Media server:
              - DLNA 1.5 media server
              - UPnP AV server
              - iTunes server
              - SqueezeCenter support
              - Photo album server
  • Web server:
    • WebDAV
    • FTP server
    • phpMyAdmin/MySQL/PHP
    • RSS client & server
    • Print server (CIFS)
    • Remote Access Support (DyDNS)
  • Smartphone application:
    • zCloud, ownCloud
  • Network application management:
    • User & group management
    • Lightweight Directory Access Protocol (LDAP)***
    • Package Management for setting up applications
  • Network security:
    • Support HTTPS and FTPES (FTP over explicit TLS/SSL)
    • Encrypted NAS to NAS remote replication
    • Encrypted NAS to external disk archive backup

Data Management

  • Backup support:
    • One-touch copy/sync button for external USB-capable devices backup
    • Backup planner:
    • - Instant/Scheduled backup
      - NAS to NAS synchronization/archive backup
      - Rsync
      - NAS to external USB hard disk backup
    • Google Drive™**, Dropbox, Memopal, ownCloud and NetDrive support
    • Apple Time Machine support
  • Download/Upload support:
    • Auto-download from FTP/HTTP/P2P download service
    • Scheduled download
    • Auto-upload photos or videos to Flickr/YouTube/FTP server
  • File system support:
    • Internal HDD: EXT4
    • External HDD: NTFS, EXT2, EXT3, EXT4, FAT32, HFS+, exFAT

System Management

  • JBOD, RAID 0/1/5/6/10, RAID5+Hot Spare
  • Online firmware upgrade
  • Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.)
  • iSCSI***

Power and Thermal Management

  • Power control:
    • Internal disk hibernation support
    • Scheduled power on/off/reboot
    • Wake-on-LAN support
    • System automatically resume after power outage
    • APC USB UPS monitoring and auto shutdown
  • Thermal management:
    • Smart fan speed control
    • High temperature alert/buzzer
    • Auto shutdown while high temperature

Minimum System Requirements

  • NAS starter utility: Windows XP and up, Mac OS X 10.5 and up
  • Browser: IE 11+, Firefox 20+, Google Chrome 37+, Safari 5+

Application Package Center

  • Cloud application:
    • ownCloud v7.x
    • Google Drive™**
    • Dropbox
    • Memopal
  • Download management:
    • NZBGet
    • Transmission
    • pyLoad
  • Backup planner
  • Gallery
  • WordPress
  • Tftp
  • NFS
  • SqueezeCenter
  • PHP-MySQL

Hardware Specifications

  • CPU: FreeScale FS1024 Dual Core 1.2 GHz
  • Memory: DDR3 1 G
  • Four 2.5" or 3.5" SATA II hard disk the max support up to 24 TB (6 TB x 4)
  • Hot swappable HDD support
  • Two Gigabit Ethernet RJ-45 connector
  • Three USB 3.0 ports
  • One SDXC card read (Up to 128 GB)
  • Buttons:
    • Power button
    • Copy/Sync button
    • Reset button
  • Smart fan design
  • Power consumption:
    • Access mode: 36.5 watt (Max)
    • Hard disk spin-down mode: 14.8 watt
  • Power:
    • Input: 100 - 240 V AC, 50/60 Hz
    • Output: 19 V DC, 4.74 A

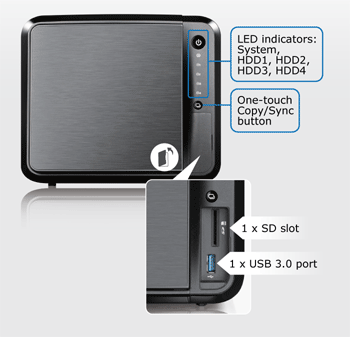

  • Front Panel:
  • NAS540 Front panel

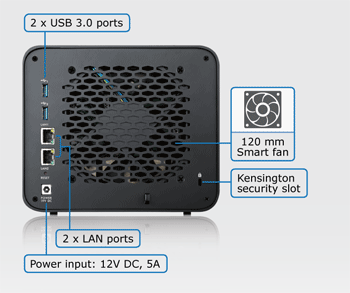

  • Rear Panel:
  • NAS540 Rear panel

Physical Specifications

  • Item dimensions (WxDxH): 190 x 225 x 160 mm (7.48" x 8.85" x 6.29")
  • Item weight: 2,000 g (4.40 lb.)
  • Packing dimensions (WxDxH): 316 x 269 x 286 mm (12.44" x 10.59" x 11.26")
  • Packing weight: 3,800 g (8.38 lb.)

Environmental Specifications

Operating Environment

  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10% R.H. to 90% R.H.

Storage environment

  • Temperature: -30°C to 70°C (-22°F to 158°F)
  • Humidity: 10% R.H. to 95% R.H.

Certification

  • Safety: CE LVD, BSMI
  • EMC: CE, FCC class B, C-Tick, BSMI
  • Others: DLNA 1.5, UPnP

Package Contents

  • Network storage device
  • Power adapter
  • Ethernet cable
  • Quick start guide
  • Warranty card



* Apple and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries. AirPlay is a trademark of Apple Inc.
** (C) 2014 Google Inc. All rights reserved. Chromecast™ is a trademark of Google Inc.
*** Release in 2015
**** Check with ownCloud’s website for official supported Linux distributions
