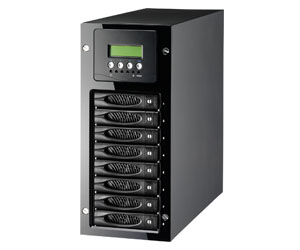

ProWare Дисковый массив Epica EP-T803E1-S3A3

Описание

Model	EP-T803E1-S3A3
Form-factor	8 Bays Tower
RAID processor	Intel IOP348 64 bit RISC
RAID level	0, 1, 10(1E), 3, 5, 6, JBOD
Cache memory	512MB ~ 4GB DDRII ECC SDRAM
No. of channels (host+drive)	2 + 8
Host bus interface	Two 4x mini SAS(3Gb/s)
Drive bus interface	SATA II (3Gb/s, NCQ)
Data transfer rate	Up to 300MB/Sec
Hot-swap drive trays	Eight (8) 1-inch trays
Online capacity expansion, RAID level/stripe size migration	Yes
Online volume sets expansion	Yes
Online array roaming	Yes
Online consistency check	Yes
SMTP manager and SNMP agent	Yes
E-mail notification	Yes
Redundant Flash image	Yes
R-Link support	Yes
Support over 2TB per volume	Yes
Instant availability and background initialization	Yes
S.M.A.R.T. support	Yes
New disk insertion / removal detection	Yes
Failed drive auto rebuild	Yes
Continuous rebuild	Yes
Multiple RAID selection	Yes
Bad block auto-remapping	Yes
Audial alarm	Yes
Password protection	Yes
Tray lock	Yes
Hot-swap power supplies	300W w/ PFC
Cooling fans	2
Battery backup	Option
Power requirements	AC 90V ~ 240V Full Range, 6A/3A at 115V/230V, 47Hz ~ 63Hz
Environmentall
Relative humidity:	10% ~ 85% Non-condensing
Operating temp:	10°C ~ 40°C (50°F ~ 104°F)
Physical dimensions:	351.4(H) x 155(W) x 400.6(D) mm
Weigh	9.8kgs (without drives)
