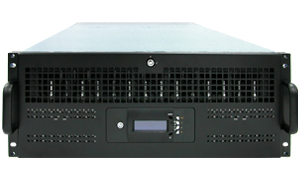

EPICa Series EP-4643S1/D1-S6S6
4U 6Gb SAS – 6Gb SAS Redundant RAID Subsystem
Features
※ Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 and JBOD
※ Supports online Array roaming
※ Online RAID level/stripe size migration
※ Online capacity expansion and RAID level migration
simultaneously
※ Support global and dedicated hot spare
※ Online Volume Set Expansion
※ Support multiple array enclosures per host connection
※ Greater than 2TB per volume set (64-bit LBA support)
※ Greater than 2TB per disk drive
※ Supports 4K bytes/sector for Windows up to 16TB per volume set
※ Disk scrubbing/ array verify scheduling for automatic repair of all
configured RAID sets
※ Login record in the event log with IP address and service
(http, telnet and serial)
※ Support intelligent power management to save energy and
extend service life
※ Support NTP protocol to synchronize RAID controller clock over
the on-board LAN port
※ Max 128 LUNs (volume set) per controller
※ Transparent data protection for all popular operating systems
※ Instant availability and background initialization
※ Multi-path & load-balancing support (Microsoft MPIO)
※ Automatic synchronization of firmware version in the dual-active
mode
※ Supports S.M.A.R.T, NCQ and OOB Staggered Spin-up capable
drives
※ Supports hot spare and automatic hot rebuild
※ Local audible event notification alarm
※ Redundant flash image for high availability
※ Real time clock support
|
Model
|
EP-4643S1/D1-S6S6 |
|
RAID Controller
|
6Gb SAS – 6Gb SAS |
|
Controller
|
Single or Redundant |
|
Host Interface
|
Two / Four 6Gb/s SAS (SFF-8088) |
|
Disk Interface
|
6Gb/s SAS, 6Gb/s SATA |
|
SAS Expansion
|
One / Two 6Gb/s SAS (SFF-8088) |
|
Capacity
|
|
|
Direct Attached
|
64 Disks |
|
Expansion
|
Up to 256 Disks |
|
Processor Type
|
800MHz Dual Core RAID-On-Chip processor |
|
Cache Memory
|
1GB ~ 8GB / 2GB ~ 16GB DDR3-1333
ECC Registered SDRAM |
|
Battery Backup
|
Optional |
|
Management Port Support
|
Yes |
|
Monitor Port Support
|
Yes |
|
RAID Features
|
|
|
RAID level
|
0, 1,10(1E), 3, 5, 6, 30, 50, 60 and JBOD |
|
Array Group
|
Up to 128 |
|
LUNs
|
Up to 128 |
|
Hot Spare
|
Yes |
|
Drive Roaming
|
Yes |
|
Online Rebuild
|
Yes |
|
Variable Stripe Size
|
Yes |
|
E-mail Notification
|
Yes |
|
Online capacity expansion,
RAID level / stripe size migration
|
Yes |
|
Online Array Roaming
|
Yes |
|
Online consistency check
|
Yes |
|
SMTP manager and SNMP agent
|
Yes |
|
Redundant Flash image
|
Yes |
|
Instant availability and
background initialization
|
Yes |
|
S.M.A.R.T. support
|
Yes |
|
MAID 2.0
|
Yes |
|
Bad block auto-remapping
|
Yes |
|
Enclosure
|
|
|
Platform
|
Rackmount |
|
Form Factor
|
4U |
|
# of Hot Swap Trays
|
64 |
|
Tray Lock
|
Yes |
|
Disk Status Indicator
|
Access / Fail LED |
|
Backplane
|
SAS2 / SATA3 |
|
# of PS / Fan Modules
|
1100W x 2 w/PFC |
|
# of Fans
|
15 |
|
Power Requirements
|
AC 90V ~ 254V Full Range, 50Hz~60Hz |
Default Slide Rail: Post to Post 800mm~1090mm (32”~42”) /
Option: Post to Post 750mm~900mm (29”~35”) |
|
Environmental
|
|
|
Relative Humidity
|
10% ~ 85% Non-condensing |
|
Operating Temperature
|
10°C ~ 40°C (50°F ~ 104°F) |
|
Physical Dimension
|
880(L) x 482.6(W) x 177(H) mm |
|
Weight (Without Disk)
|
43.5/45Kg |
