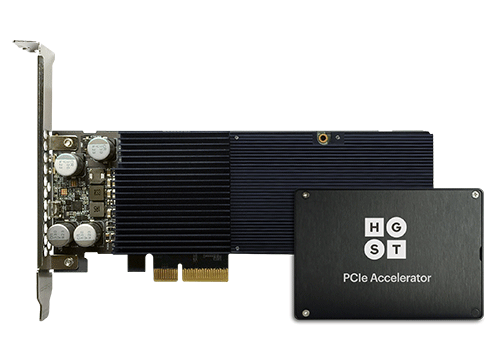

Твердотельный накопитель HGST Ultrastar SN100 Series PCIe SSD (3200GB, 1600GB & 800GB NVM Express Compatible PCIe Solid-State Drives)

 Ultrastar SN150 (3.2TB, 1.6TB)

Ultrastar SN100 (3.2TB, 1.6TB)

Ultrastar SN100 (800GB)

General

Model # / Part #

HUSPR3216AHP301 / 0T00831 HUSPR3232AHP301 / 0T00833

HUSPR3216ADP301 / 0T00837 HUSPR3232ADP301 / 0T00839

HUSPR3280ADP301 / 0T00835

Interface

PCIe 3.0 x4

PCIe 3.0 x4 (8639)

PCIe 3.0 x4 (8639)

Form Factor

HH-HL add-in card

SFF 2.5-inch drive

SFF 2.5-inch drive

Capacities (GB)

3200 / 1600

3200 / 1600

800

Performance

Read Throughput (max MB/s, sequential 128k)

3000

3000

2600

Write Throughput (max MB/s, sequential 128k)

1600

1600

1400

Read IOPS (max IOPS, random 4k)

743,000

743,000

634,000

Write IOPS (max IOPS, random 4k)

140,000

140,000

80,000

Mixed IOPS (70/30 R/W, random 4k)

310,000

310,000

190,000

Read IOPS (max IOPS, random 8k)

385,000

385,000

330,000

Write IOPS (max IOPS, random 8k)

75,000

75,000

42,000

Latency 512B (µs)

20

20

20

Reliability

MTBF (M hours)

2

2

2

Annual Failure Rate (AFR)

0.44%

0.44%

0.44%

Endurance

3 DW/D

3 DW/D

3 DW/D

Warranty

Warranty

5 years

5 years

5 years

Physical Size

Dimensions, Without Bracket (mm)

167.65 x 68.9 x 14.49

100.45 x 69.85 x 15

100.45 x 69.85 x 15

Weight, Without Bracket (g)

232 / 231

177 / 174

166

Environmental

Power Consumption (active/idle)

25 Watts / 8 Watts

25 Watts / 8 Watts

25 Watts / 8 Watts

Operating Temperature

0° to 55°C

0° to 70°C

0° to 70°C

Non-Operating Temperature

-40° to 70°C

-40° to 70°C

-40° to 70°C

Airflow (LFM)

300

300

300

Thermal Throttling

Supported

Supported

Supported

Temperature Monitoring

In-band and out-band using SMBus

In-band and out-band using SMBus

In-band and out-band using SMBus

PowerSafe® Technology

Data protection during power loss

Data protection during power loss

Data protection during power loss

Power Throttling

Supported

Supported

Supported

Power Rails

3.3V aux, 12V supply rail

3.3V aux, 12V supply rail

3.3V aux, 12V supply rail

JEDEC Compliance

3-month retention at 40°C at EOL

3-month retention at 40°C at EOL

3-month retention at 40°C at EOL

Software

HGST Device Manager (HDM)

CLI and GUI interface

CLI and GUI interface

CLI and GUI interface

NVMe Standard

1.1a

1.1a

1.1a

Manufacturing Standards

Penang, Malaysia

ISO 9001:2008 certified, ISO 14001:2004 certified

ISO 9001:2008 certified, ISO 14001:2004 certified

ISO 9001:2008 certified, ISO 14001:2004 certified

Operating System

Linux™

RHEL 6/7, SLES 12, CentOS 6/7, Open SUSE 12

RHEL 6/7, SLES 12, CentOS 6/7, Open SUSE 12

RHEL 6/7, SLES 12, CentOS 6/7, Open SUSE 12

Windows®

Microsoft Server 2008 R2, Windows 2012, Windows 2012 Server

Microsoft Server 2008 R2, Windows 2012, Windows 2012 Server

Microsoft Server 2008 R2, Windows 2012, Windows 2012 Server
