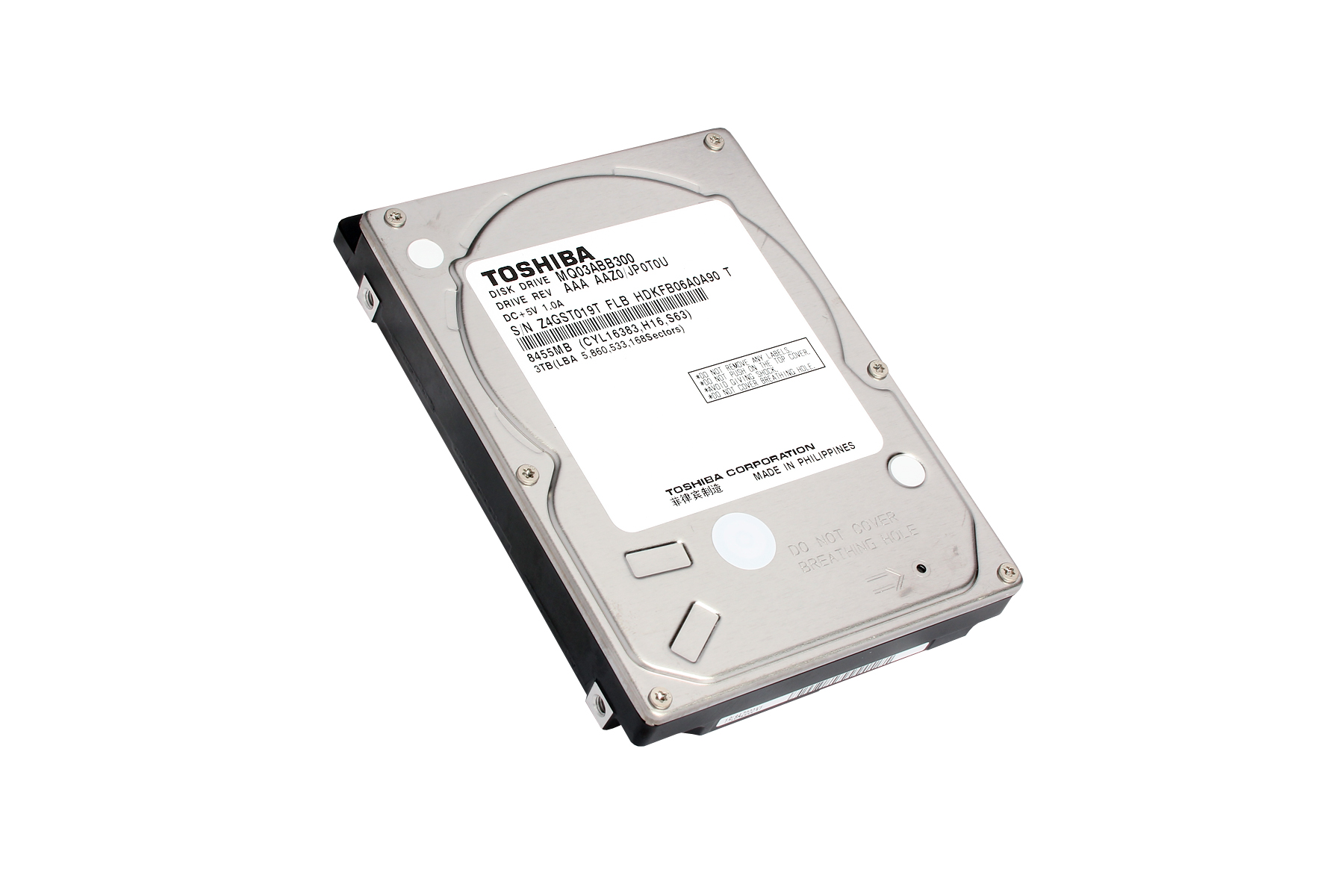

MQ03ABB300 |
Basic Specifications |
Interface |
Serial ATA 3.0 / ATA-8 |
Interface Speed |
6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
Formatted Capacity |
3 TB |
Logical Data Block Length ( HOST ) |
512 B |
Logical Data Block Length ( DISK ) |
4,096 B |
Environmental Compliance |
RoHS Compatible |
Performances |
Buffer Size |
16 MiB |
Rotation Speed |
5,400 rpm |
Average Latency Time |
5.56 ms |
Reliability |
Unrecoverable Error Rate |
1 per 1014 bits read |
Power Requirements |
Supply Voltage |
5 V ±5 % |
Power Consumption ( Read / Write ) |
1.70 W Typ. |
Power Consumption ( Low Power Idle ) |
0.70 W Typ. |
Energy Consumption Efficiency / Category Name |
0.000234 / J |
Dimensions |
Height |
15.0 mm |
Width |
69.85 mm |
Length |
100.0 mm |
Weight |
180 g Max. |
Environmental Requirements |
Temperature ( Operating ) |
0 to 60 °C |
Temperature ( Non-operating ) |
-40 to 65 ℃ |
Humidity ( Operating ) |
8 to 90 % R.H. |
Humidity ( Non-operating ) |
8 to 90 % R.H. |
Altitude ( Operating ) |
-300 to 3,000 m |
Altitude ( Non-operating ) |
-300 to 12,000 m |
Vibration ( Operating ) |
9.8 m/s2 { 1.0 G } ( 5 to 500 Hz ) |
Vibration ( Non-operating ) |
49 m/s2 { 5.0 G } ( 15 to 500 Hz ) |
ShocK ( Operating ) |
1,960 m/s2 { 200 G } ( 1 ms half sine wave )
2,940 m/s2 { 300 G } ( 2 ms half sine wave ) |
Shock ( Non-operating ) |
5,880 m/s2 { 600 G } ( 1 ms half sine wave )
1,960 m/s2 { 200 G } ( 11 ms half sine wave ) |
Acoustics ( Sound Power ) |
Idle |
25 dB |
Seek |
25 dB |
