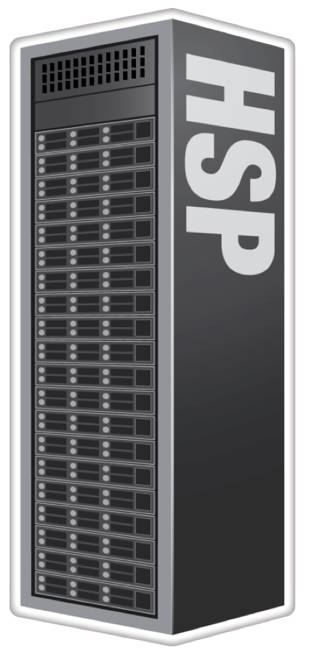

Hitachi Hyper Scale-Out Platform 400 Specifications
Product Model: Hitachi Hyper Scale-Out Platform 400 (per node) |
Product SKU: SSG-SOP400-SN0001A |
Form factor (height) |
2U (rack units) |
Power |
Redundant 920W platinum power supplies; 220V-30A, L6-30P connectors |
Processor |
Two Intel Xeon E5-2620 2.4GHz 15M cache processors (E5v3) |
Memory |
192GB |
NVRAM card |
8GB nonvolatile RAM |
Hard disk drive or HDD (data) |
Twelve 3.5" 6TB SAS 7,200rpm HDD (72TB raw) |
HDD (for application or operating system) |
Two 2.5" 300GB SAS 10,000rpm HDD |
Network (back end) |
40GbE dual-port QSFP+ NIC |
Network (front end) |
10GbE single-port SFP+ NIC |
Width |
17.2" (437mm) |
Height |
3.5" (89mm) |
Depth |
25.5" (638mm) |
Weight |
95.75lbs (with HDDs installed) |
Power @ idle (WATTS) |
270W (35 degree C, 120V input voltage) |
Power @ idle (BTUs/hr) |
921.2 BTUs/hr (35 degree C, 120V input voltage) |
Power under stress (WATTS) |
428W (35 degree C, 120V input voltage) |
Power under stress (BTUs/hr) |
1460.4 BTUs/hr (35 degree C, 120V input voltage) |
Operating temperature range |
10 – 35 degree C |
Humidity range |
8 – 90% noncondensing |
