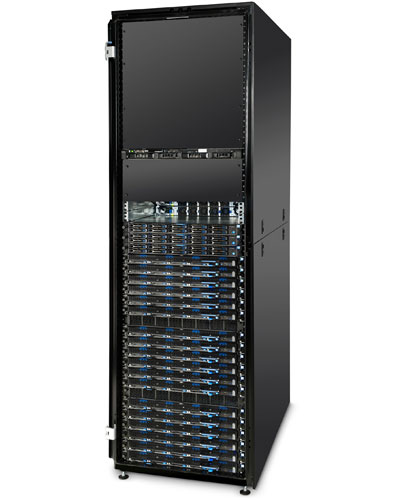

HGST Дисковый массив ActiveScale P100

Scale-Up Module P1U0720

Maximum Configuration

Maximum Number of Objects

0.6B

0.6B

16.2B

Configuration Capacity (raw/usable)

720TB / up to 508TB

720TB / up to 508TB

19.4PB/12.9PB

Client throughput performance

Up to 3.5GB/s per base system

Up to 3.5GB/s per base system

Up to 3.5GB/s per base system

Data Integrity

Tolerates 1000 bit errors per object

Tolerates 1000 bit errors per object

Tolerates 1000 bit errors per object

Data Durability

From 11 nines
(99.999999999%)
to 15 nines
(99.9999999999999%)

From 11 nines
(99.999999999%)
to 15 nines
(99.9999999999999%)

From 11 nines
(99.999999999%)
to 15 nines
(99.9999999999999%)

Protocols

RESTful S3 (NFS/SMB/Swift via gateway)

RESTful S3 (NFS/SMB/Swift via gateway)

RESTful S3 (NFS/SMB/Swift via gateway)

Client Connectivity

60Gb/s per base system (or node) (6x10Gb/s)

60Gb/s per base system (or node) (6x10Gb/s)

60Gb/s per base system (or node) (6x10Gb/s)

Power Consumption - typical/max (W)

1.85/2.03 KW

1.38/1.51 KW

41.49/45.45 KW

Power Consumption - typical/max (KVA)

1.89/2.06 KVA

1.39/1.53 KVA

42.03/46.08 KVA

Power Characteristics

208-240V

208-240V

208-240V

Rack Space Requirements (rack units)

12RU

6RU

216RU

Configuration weight (kg/lbs)

274 kg/605 lbs

191kg/421 lbs

5904 kg/13016 lbs

Temperature Range

5°C to 35°C

5°C to 35°C

5°C to 35°C

Temperature Range

-40°C to 65°C

-40°C to 65°C

-40°C to 65°C

Cooling

Redundant high efficiency fans

Redundant high efficiency fans

Redundant high efficiency fans

Compliance

FCC/ICES-003,
CE, VCCI, CISPR 22,
CISPR 24, KN22, KN24,
EN60950-1 2nd edition,
UL60950-1 2nd edition

FCC/ICES-003,
CE, VCCI, CISPR 22,
CISPR 24, KN22, KN24,
EN60950-1 2nd edition,
UL60950-1 2nd edition

FCC/ICES-003,
CE, VCCI, CISPR 22,
CISPR 24, KN22, KN24,
EN60950-1 2nd edition,
UL60950-1 2nd edition

Carbon Footprint (max)

0.001 Metric Tons

0.001 Metric Tons

0.029/0.032 Metric Tons

Operating System software

ActiveScale 5

ActiveScale 5

ActiveScale 5

Management interfaces

Real-time System Management Console,
CLI, RESTful API

Real-time System Management Console,
CLI, RESTful API

Real-time System Management Console,
CLI, RESTful API

System analytics

ActiveScale CM, a cloud-based service

ActiveScale CM, a cloud-based service

ActiveScale CM, a cloud-based service

Security

Data encryption in flight (AES-256),
Data encryption at rest (AES-256),
Multi-geo network security

Data encryption in flight (AES-256),
Data encryption at rest (AES-256),
Multi-geo network security

Data encryption in flight (AES-256),
Data encryption at rest (AES-256),
Multi-geo network security

Data Integrity protection

BitSpread: Advanced Rateless Erasure Coding

BitSpread: Advanced Rateless Erasure Coding

BitSpread: Advanced Rateless Erasure Coding

SW/FW upgrades

Non-disruptive rolling upgrades

Non-disruptive rolling upgrades

Non-disruptive rolling upgrades
